Product details
GFCI VERSION Sine wave inverter. 12 Volts DC input, 120 Volts 60 Hz pure sine wave output. This has a single NEMA5-R receptacle as its output. This is the standard GFCI receptacle outlet used in the US. For use in marine applications this GFCI version is required to comply with ABYC Standard
- 1200 VA continuous output at 25 Deg C
- 1000 Watts continuous output at 25 Deg C
- Peak Power 2200 Watts
- Max efficiency 87%
- Zero load power 7 Watts
- Weight 16.3 Lbs

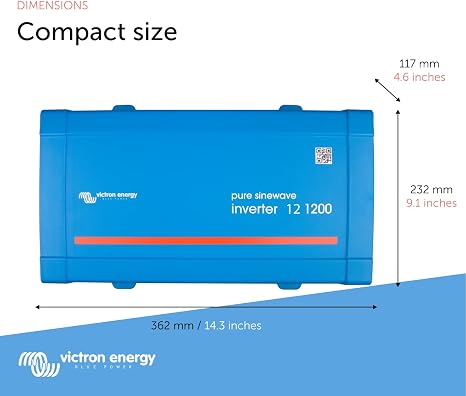

- Dimensions 4.1" x 9.1" x 14.3"
- Can accept up to 2 awg DC Power Wire
| Phoenix Inverter Model Number | 12/1200 |
| Continuous power at 25°C | 1200VA |
| Continuous power at 25°C / 40°C | 1000 / 850W |
| Peak power | 2200W |
| Output AC (adjustable) | 120VAC 50/60Hz |
| Input voltage range | 9.2 - 17V |
| DC low shut down (adjustable) | 9.3V |
| DC low restart and alarm (adjustable) | 9.3V |
| Battery charged detect (adjustable) | 14.0V |
| Max. efficiency | 87% |
| Zero-load power | 7W |
| Zero-load in ECO mode (adjustable) | 1.0W |
| Remote on-off | Optional |
| Battery connection | Screw terminals |
| AC Outlet | NEMA GFCI |
| Protection | IP66 |
| Weight | 16.3 Lbs |
| Dimensions | 4.6 x 9.1 x 14.3 |

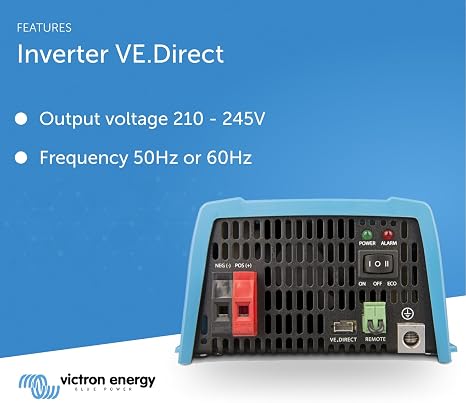

Uses for the VE.Direct communication port
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets and other devices (VE.Direct to Bluetooth Smart dongle needed)
- A remote panel
Configuration possible with Bluetooth or USB Interface:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Output voltage 115 - 120V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off
- ECO mode sense level
Monitoring possible with Bluetooth or USB interface:
- Battery voltage,
- AC Output voltage and current,
- Alarms
The VE Direct port can be used for the Remote Panel or for the Bluetooth Dongle or for the VE-USB interface, but the inverter only has one VE Direct port so you can only use it for one purpose at a time.
