Victron

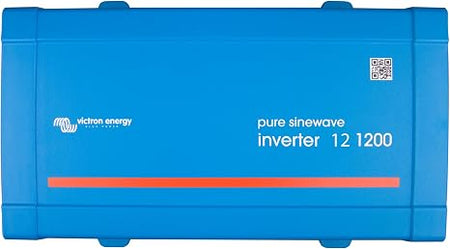

Victron Phoenix Inverter 12/1200

$265.99
Sale $379.99 $265.99

GFCI VERSION    Sine wave inverter.  12 Volts DC input, 120 Volts 60 Hz pure sine wave output.  This has a single NEMA5-R receptacle as its output. This is the standard GFCI receptacle outlet used in the US.  For use in marine applications this GFCI version is required to comply with ABYC Standard

  • 1200 VA continuous output at 25 Deg C
  • 1000 Watts continuous output at 25 Deg C
  • Peak Power 2200 Watts
  • Max efficiency 87%
  • Zero load power 7 Watts
  • Weight 16.3 Lbs

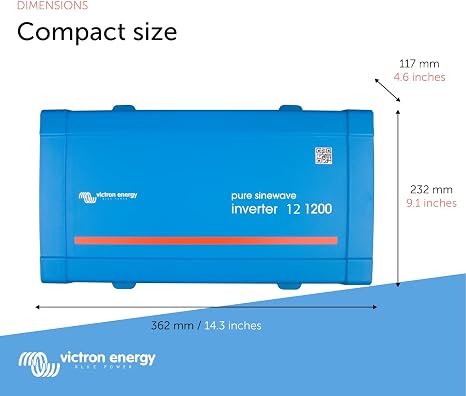

  • Dimensions 4.1" x 9.1" x 14.3"
  • Can accept up to 2 awg DC Power Wire
Phoenix Inverter Model Number 12/1200
Continuous power at 25°C  1200VA
Continuous power at 25°C / 40°C 1000 / 850W
Peak power 2200W
Output AC (adjustable) 120VAC   50/60Hz
Input voltage range 9.2 - 17V
DC low shut down (adjustable) 9.3V
DC low restart and alarm (adjustable) 9.3V
Battery charged detect (adjustable) 14.0V
Max. efficiency 87%
Zero-load power 7W
Zero-load in ECO mode (adjustable) 1.0W
Remote on-off Optional
Battery connection Screw terminals
AC Outlet NEMA GFCI
Protection IP66
Weight 16.3 Lbs
Dimensions 4.6 x 9.1 x 14.3

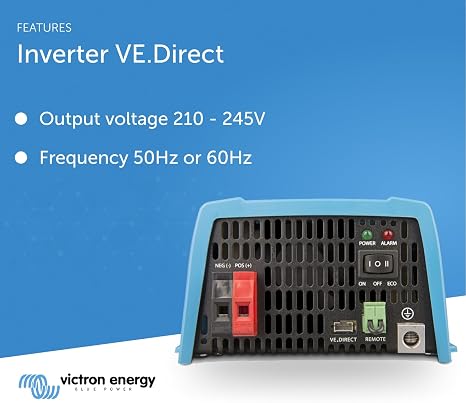

Uses for the VE.Direct communication port

The VE.Direct port can be connected to:

  • A computer (VE.Direct to USB interface cable needed)
  • Apple and Android smartphones, tablets and other devices (VE.Direct to Bluetooth Smart dongle needed)
  • A remote panel
Configuration possible with Bluetooth or USB Interface:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Output voltage 115 - 120V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off
  • ECO mode sense level
Monitoring possible with Bluetooth or USB interface:

  • Battery voltage,
  • AC Output voltage and current,
  • Alarms
The VE Direct port can be used for the Remote Panel or for the Bluetooth Dongle or for the VE-USB interface, but the inverter only has one VE Direct port so you can only use it for one purpose at a time.
